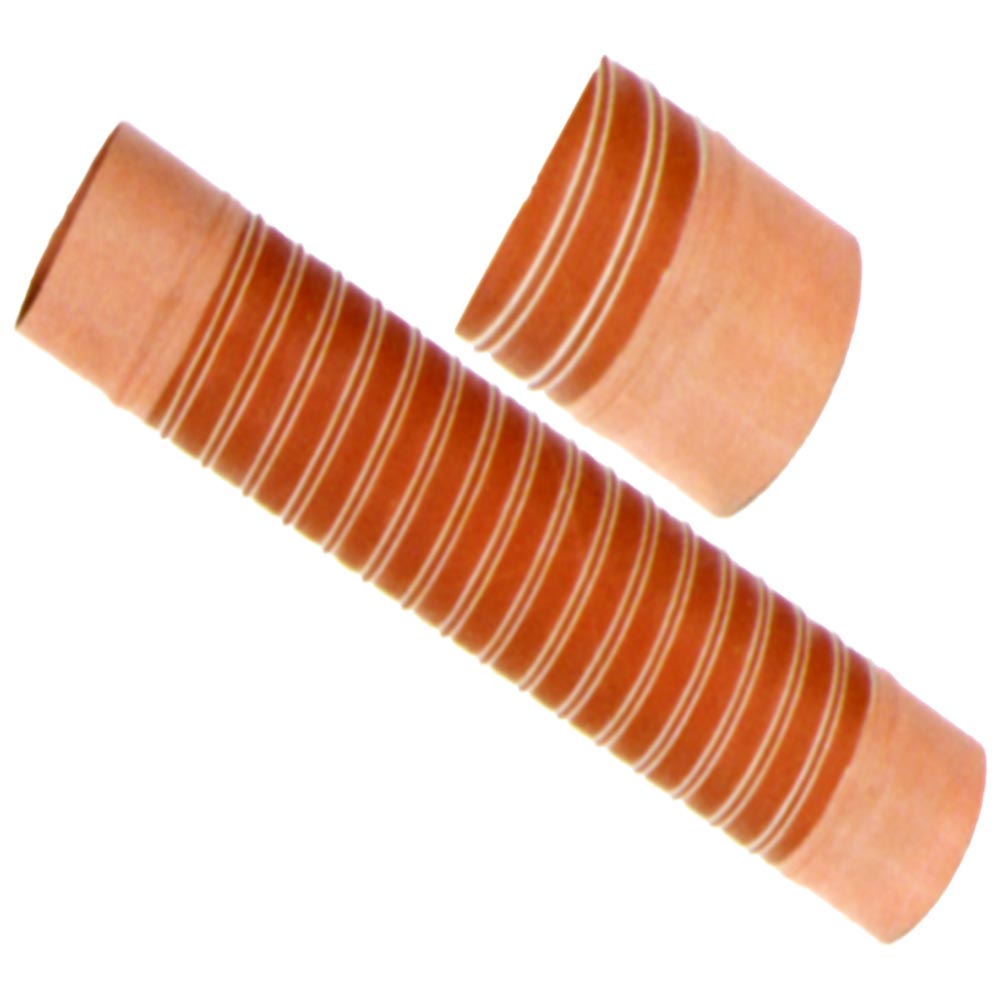

a flexible hose manufactured with a double fiberglass
abric layer smeared with silicon, and incorporated spiral in a copper harmonic steel thread, double external string in fiberglass.

CHARACTERISTICS

• COLOR: Brick red
• GRADING: 4 m. standard (2 m. per Ø 19 mm)
• TEMPERATURES OF USE : -60°C + 270°C (+300°C ends)
• DIAMETERS OF PRODUCTION: da Ø 19 a Ø 305 mm
• AXIAL COMPRESSIBILITY: 30%
• ON REQUEST: self extinguished V-0 (UL-94) (Tubo P4-S/FR)

USES

Aspiration,extraction,air blowing even with dusty particles in presence of high temperatures

MAINTENANCE:

regularly check the state of wear of the hose and provide for its immediate replacement in case of damages or breakages
Pay close attention to the temperatures of use of the duct

The data reported in the table are indicative.
*= the pressure and depression data refers to an 20°C environment

DIAMETERS OF PRODUCTION

19 – 22 – 25 – 26 – 28 – 30 – 32 – 35 – 38 – 39 – 41- 42 – 44 – 45 – 51 – 52 – 55 – 57 – 58 – 60 – 62 – 63 – 64 – 65 – 67 – 70 – 72 – 76 – 80 – 83 – 89 – 92 – 95 – 102 – 108 – 110 – 114 – 120 – 127 – 130 – 140 – 152 – 160 – 165 – 170 – 178 – 180 – 203 – 254 – 305

on request: flexible hose P4-S with terminal sleeves
